Protect Water Resources For Our Planet

|
| Place of Origin: | China |
| Brand Name: | Changier |
| Certification: | CE/ISO9001 |
| Model Number: | Silicone-D300 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Box |
| Delivery Time: | 7 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000Pcs Per Month |
| Material: | Silicone Membrane+PP+ABS | Size: | 215mm,280mm,330mm |
|---|---|---|---|
| Bubble Diameter: | 1~3mm | Plastic Tray Material: | ABS/UPVC/PP |
| Type: | Disc Type | Package: | Carton Box |
| Highlight: | fine bubble tube diffuser,fine bubble air diffuser |
||

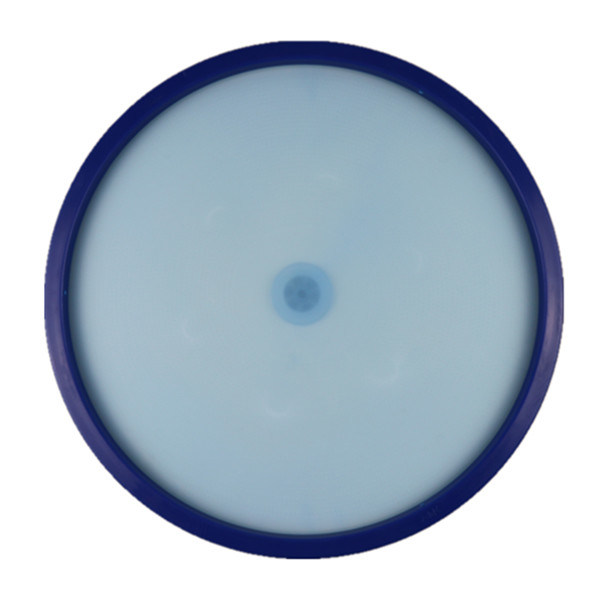

9" 11" 12" Aeration Diffuser Anti Congestion Fine Bubble Membrane Diffusers
Fine bubble disc air diffuser with silicone membrane features a unique split pattern and slit shapes, which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency.
A much highly effective and integrated check valve enables the aeration zones to be easily shut down for air-on/air-off applications.
It can be operated over a wide range of airflows with minimum maintenance for long term performance.
Silicone membranes offer high temperture resistance ,and chemical resistance that differs from other products .
Silicone is an inorganic,and therefore offers excellent resistance tomany organic wastes.
Our formulation is designed to resist tearing and creep,while producing fine bubbles at a modest headloss.
| Material | EPDM | EPDM | EPDM | Silicone | Silicone | Silicone | TPU |
| Specification | D200 | D260 | D300 | D200 | D260 | D300 | D200 |
| Outer Diameter(mm) | 215 | 280 | 330 | 215 | 280 | 330 | 215 |
| Membrane Diameter(mm) | 192 | 255 | 300 | 192 | 255 | 300 | 192 |
| Membrane Thickness(mm) | 2±0.1 | 2±0.1 | 2±0.1 | 2±0.1 | 2±0.1 | 2±0.1 | 1.2 |
| Bubble Diameter(mm) | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 |
| Air Flow Range(Nm³/h) | 1~2.5 | 1~4 | 1~6 | 1~2.5 | 1~4 | 1~6 | 1~2.5 |
| Normal Air Flow(Nm³/h) | 1.8 | 2.5 | 4 | 1.8 | 2.5 | 4 | 1.8 |
| Max Working Temp (℃) | 80 | 80 | 80 | 100 | 100 | 100 | 100 |
1. Aeration of fishpond and other applications
2. Aeration of deep aeration basin
3. Aeration for excreta and animal waste water treatment plant
4. Aeration for denitrification/dephosphorization aerobic processes
5. Aeration for high concentration waste water aeration basin,and aeration for regulating pond of waste water treatment plant
6. Aeration for SBR,MBBR reaction basin,contact oxidation pond;activated sludge aeration basin in sewage disposal plant
