Protect Water Resources For Our Planet

|
| Place of Origin: | Jiangsu,China |
| Brand Name: | Changier |
| Certification: | CE/ISO9001 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 45 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Units Per Year |
| Applicable Industries: | Food & Beverage Factory | Dimension(L*W*H): | Customized Size |
|---|---|---|---|
| Warranty: | 1 Year Warranty | Structure: | Conveyor System |
| Certification: | ISO 9001, CE Certificate | Type: | Screw Conveyor |
| Name: | Screw Conveyor Machine | Color: | Costomized |
| Highlight: | shaftless screw conveyor,screw feeder machine |
||

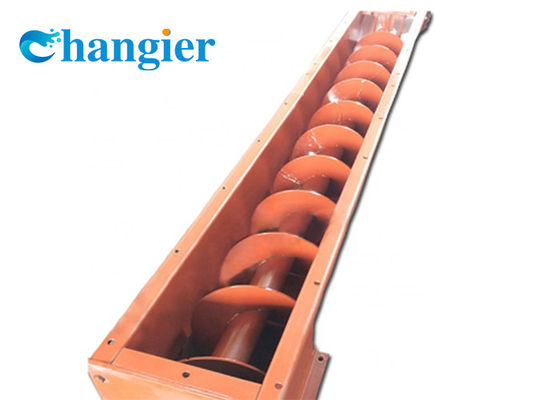

Manufacturing Various Stainless Steel Feeders For Screw Conveyors
Compared with traditional shaft screw conveyor, Shaftless screw conveyor adapts to non center shaft design, using a flexible steel spiral push material, which has the following advantages: strong anti winding. The spiral surface of fully enclosed transmission and easy cleaning, can ensure the sanitation and the material is not contaminated, no leakage, high torque, low energy consumption. Due to the fact that the screw is not provided with a shaft, the material is not easy to be blocked, the discharge port is not blocked, and the utility model can be operated at a lower speed, and the utility model has the advantages of smooth transmission and low energy consumption. The machine can work under high temperature. The utility model has the advantages of compact structure, space saving, beautiful appearance, convenient operation, economy and durability.
Screw conveyor machine for grain are spiral bulk material transportation systems that convey raw ingredients to and from processing areas that are on different levels of a facility. These conveyors can horizontal transport materials, also it can slanted at different angles to economically elevate and convey materials up and down floors. They require ample space and an increased amount of power to lift the material, depending on the steepness of the angle.
1.Simple structure,easy operation
2.Small section of whole machine,being suitable for horizontal or tilted transportation
3.Stable transportation so as to play a good role
| Model |
Screw diameter |
Screw pitch | n---rotation speed(r/min), allowable deviation<10% | |||||||
| Q---volume(m3/h), fill-factor=0.33 | ||||||||||
| (mm) | (mm) | n | Q | n | Q | n | Q | n | Q | |
| LS160 | 160 | 112 | 112 | 8 | 90 | 7 | 71 | 6 | 50 | 4 |
| LS200 | 200 | 100 | 100 | 14 | 80 | 12 | 63 | 10 | 50 | 7 |
| LS250 | 250 | 90 | 90 | 24 | 71 | 20 | 56 | 16 | 45 | 13 |
| LS315 | 315 | 80 | 80 | 34 | 63 | 26 | 50 | 21 | 40 | 16 |
| LS400 | 355 | 71 | 71 | 64 | 56 | 52 | 45 | 41 | 36 | 34 |
| LS500 | 400 | 63 | 63 | 100 | 50 | 80 | 40 | 64 | 32 | 52 |
| LS630 | 450 | 50 | 50 | 145 | 40 | 116 | 32 | 94 | 25 | 80 |
| LS800 | 500 | 40 | 40 | 208 | 32 | 165 | 25 | 130 | 20 | 110 |
| LS1000 | 600 | 32 | 32 | 300 | 25 | 230 | 20 | 180 | 16 | 150 |
Q:What factors I need to get a quotation?
A: Material size and bulk density,height of discharge port, ideal capacity for proper type is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry.Skilled workers and strict quality control system can ensure every machine with best working performance.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
