Protect Water Resources For Our Planet

|
| Place of Origin: | China |
| Brand Name: | Changier |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | woven bag,0.1cbm/bag |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15CBM/DAY |
| Material: | PVC PP | Color: | White |
|---|---|---|---|
| Service Life: | >15 Years | Membrane-forming Time: | 3-15 Days |
| After-sales Service Provided: | Online Support | Product Name: | Inclined Tube Settler |
| Tube Settler Aperture: | 35mm, 50mm, 80mm Etc | Application: | Sedimentation Tank |
| Highlight: | 35mm tube settler media,inclined tube settler,Sedimentation Tank tube settler media |
||

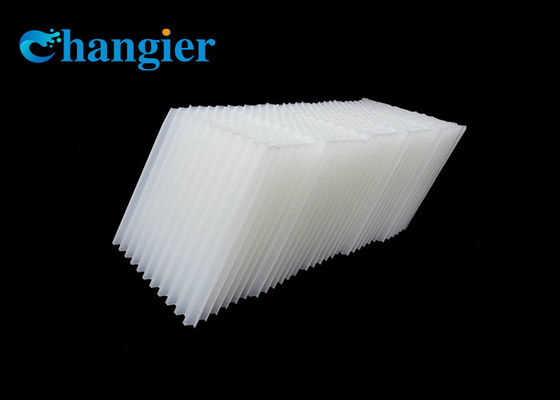

PP Tube Settler Media For Waste Water Treatment , Hexagonal Honeycomb Inclined Lamella Plate
Honeycomb Packing maily used for sediment and degritting, It applys to construction sand, general industrial and in addition to drinking water, sewage precipitation, precipitation every oil and tail concentrate processing, which is suitable for newly-built project, and also applies to the transformation of the existing old pool. All can obtain good economic benefit.
Plastic Straight Packing i.s mainly used for the bio-filter high load bio-filter, tower bio-filter, submerged type bio-filter (also called contact oxidation pool) and biological somewhere in the microbial carriers, and the industrial organic wastewater biochemical treatment of sewage and city.
The Plastic sloped tube packing produced can be divided into two types:sloped typestraight type.
The material adopted includes Polypropylene(PP),ethylene-propylene copolymer, and polyvinyl chloride (PVC).
They have the characteristics of light weight, big flow, low pressure drop, large specific surface area, easy change, etc.
| Specification (Diam) | Thickness m/m | Sheet/m2 | Weight | m3/mt | specific surface area n2/m3 |
|
30mm |
0.40 | 68 | 32 | 31.25 | 116 |
| 0.45 | 68 | 36 | 27.7 | 116 | |
| 0.50 | 68 | 40 | 25 | 116 | |
|
35mm |
0.40 | 56 | 26 | 38.5 | 109 |
| 0.45 | 56 | 29 | 34.5 | 109 | |
| 0.50 | 56 | 32.5 | 30.7 | 109 | |
|
50mm |
0.45 | 40 | 21 | 47.6 | 97 |
| 0.50 | 40 | 23 | 43.5 | 97 | |
| 0.55 | 40 | 25.5 | 39.2 | 97 | |
|
60mm |
0.55 | 33 | 21 | 47.6 | 75 |
| 0.60 | 33 | 23 | 43.5 | 75 | |
| 0.65 | 33 | 25 | 40 | 75 | |
|
80mm |
0.70 | 25 | 22 | 47.6 | 50 |
| 0.80 | 25 | 25 | 43.5 | 50 | |
| 0.85 | 25 | 27 | 40 | 50 |
Widely used in sewage, petrochemical, light industry paper, food industry, wine, sugar, textile, printing and dyeing, leather,
pharmaceutical and other industrial wastewater treatment.
Our company specializes in the production of various fillers, aerators and environmental protection equipment. The company is committed to the research and development of various new sewage treatment fillers and aeration systems.
We do our best to provide the highest quality products manufactured by the latest facilities and develop various products at competitive prices to provide customers with the best certification in all aspects. Our main markets are Britain, the United States, South America, Russia, Africa and some Asian countries.
