| Place of Origin: | China |
| Brand Name: | Changier |
| Model Number: | PP pall ring |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | woven bag,0.1cbm/bag |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15CBM/DAY |
| Model Number: | PP Pall Ring | Plastic Modling Type: | Mould |
|---|---|---|---|
| Color: | White | Thickness: | 1.2 Mm |
| Free Volume: | 90 % | Diameter: | 25 Mm 38mm 50mm |
| Bulk Density: | 150 Kg/m3 | Shape: | Ring |
| Highlight: | bio MBBR Filter Media,pe06 MBBR Filter Media,wastewater treatment MBBR Filter Media |
||

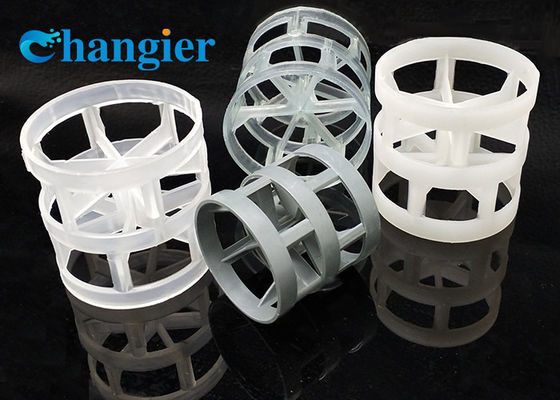

25mm 38mm 50mm Plastic Packing PP Pall Ring For Tower Packing
Pall ring packing is a kind of open-hole ring packing with equal height and diameter. Each layer of window hole has 5 tongues. Each tongue is curved inwardly to the center of the ring. Holes area takes about 30% of the total area of the ring wall. It has the characteristics of large porosity, low pressure drop and mass transfer unit height, high flood point, sufficient gas-liquid contact, small specific gravity, and high mass transfer efficiency.
This structure improves the gas-liquid distribution and makes full use of the inner surface of the ring, so that the gas and liquid in the packed tower can pass freely through the window.
| Model | Pall Ring | ||||||
| Material | PP,RPP,PE,PVC,CPVC,PVDF,etc. | ||||||
| Spec of PP Pall Ring | D*H*T | Number per m³ | Bulk density | Surface area | Free volume | F factor | |
| (mm) | PCS | (kg/m³) | (m²/m³) | (%) | (m-1) | ||
| Dg16 | 16*16*1.1 | 112000 | 141 | 274 | 91 | 249 | |
| Dg25 | 25*25*1.2 | 53500 | 150 | 175 | 90 | 239 | |
| Dg38 | 38*38*1.4 | 15800 | 98 | 115 | 89 | 220 | |
| Dg50 | 50*50*1.5 | 6500 | 74.8 | 112 | 90 | 154 | |
| Dg76 | 76*76*2.6 | 1930 | 70.9 | 73 | 92 | 94 | |
| Advantages: | High Free Volume; Low Pressure Drop; Low Mass-Transfer Unit Height; High Flooding Point; Small Specific Gravity; High Mass Transfer; Uniform Gass-Liquid Contact; Lightweight Construction; Towerr Packing. | ||||||
| Typical Application | 1. Absorption; 2. Scrubbing; 3. Stripping services; 4. All kinds of Seperation 5. Plastic Packed Columns; 6. Cooling Tower Packing | ||||||
| Package : | Jumbo bag; | ||||||
| M.O.Q: | 1 CBM | ||||||
| Payment Terms: | T/T; L/C; PayPal; West Union | ||||||
| Warranty: | a) By National Standard HG/T 21556.3-1995 | ||||||
| b) Offer lifetime consultation on problems occurred | |||||||
| Container | 20GP | 40GP | 40HQ | Normal order | Minimum Order | Sample order | |
| Quantity | 25 CBM | 54 CBM | 68 CBM | <25 CBM | 1 CBM | < 5 pcs | |
| Delivery Time | 7 days | 14 days | 20 days | 7 Days | 3 days | Stock | |
| Price:(@ø50 PP) USD/CBM | 322 | 320 | 318 | 326 | 330 | discussable | |
| Comments: | Customized making is allowed. | ||||||
Suitable for carbon dioxide degassing tower, ozone contact reaction tower, etc. as contact packing and other reaction towers.
Metal pall ring is suitable for vacuum distillation tower, treatment of materials with heat sensitivity, easy decomposition, easy polymerization and easy carbon deposition.
PP Pall ring is especially suitable for middle and low temperature (60-80 °) distillation , absorb for petroleum, chemical industry, chlor alkali, gas, environmental protection and other industries. It is also suitable to be contact packing for absorption and washing tower, carbon dioxide degassing tower / ozone contact tower and other reaction towers.
Advantages
1. Large specific surface area, the flux is large, which is formed by many rings, so the gap of the filler can have a high liquid holding capacity;
2. Good hydrophilicity, the separation efficiency is high, and the distribution performance of gas and liquid is greatly improved compared with rasching ring due to the opening of ring wall, especially the surface area in the ring can be fully utilized;
3. Large void ratio, low pressure drop and mass transfer unit height, high flooding point, sufficient gas-liquid contact, small specific gravity, high mass transfer efficiency;
4. Beautiful workmanship, almost no burr;
5. Specially designed structure , which has the advantages of high flux, low resistance, high separation efficiency and large operating flexibility;
6. Wide range of application, can be used in many fields;
7. 100% virgin material: PP, SS304, Ceramics, ensure the product is endurable and safe.
Products real shot
1.a. What's your production ability for one month?
b. We can product 2000 cubic meters for one month .
2.a. What's your MOQ?
b. 1 Cubic meter is available .
3.a. What's your shipping port?
b. Shanghai ,China
